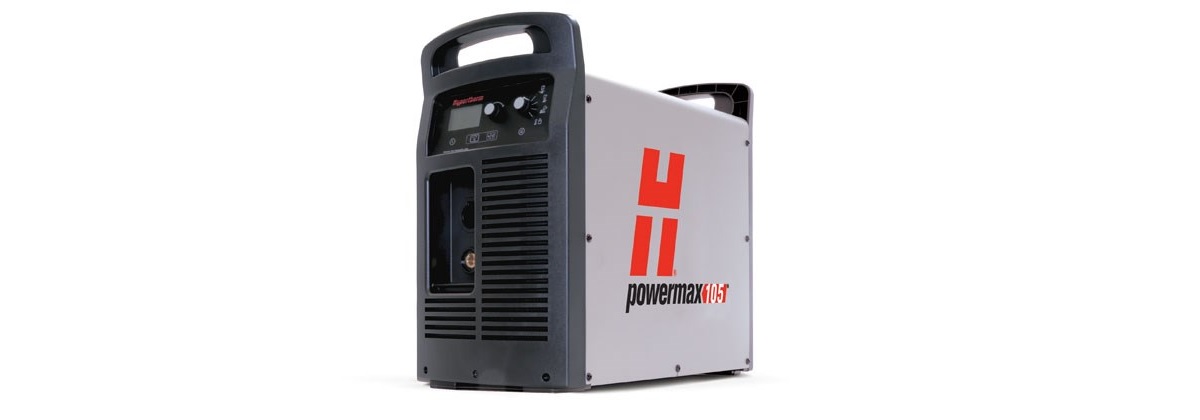

Powermax105 Plasma System

The Powermax105® plasma system has the duty cycle and performance needed for tough industrial cutting and gouging jobs. Delivering superior cut capabilities on 32 mm thick metals, it also offers the latest technological innovations, such as Smart Sense™ technology to automatically adjust the gas pressure. Seven Duramax™ torch styles provide versatility for hand cutting, portable automation, X-Y table cutting, and robotic cutting and gouging.

Maximum productivity:
– Finish jobs faster with cut speeds three times greater than oxyfuel on 12 mm mild steel
– Superior cut and gouge quality let you spend less time on grinding and edge preparation
– Multiple, easy-to-use torch styles let you tackle a wide variety of jobs using the same system

Easy-to-use for cutting and gouging:
– No need to change the air pressure – Smart Sense technology ensures that it is always correctly set; it also detects electrode end-of-life, automatically turning off power to the torch to prevent potential damage to other parts or to the workpiece
– SpringStart™ technology ensures consistent starting and a more reliable torch
– Drag cut at full output with a patented shield that reduces dross buildup for smoother cutting

Built to handle tough jobs:
– Hypertherm Certified™ reliability ensures peak performance even in the harshest environments
– Duramax torches are designed for high-impact and heat resistance

DOWNLOADS
Operating Manual
Troubleshoot Guide
Brochure

Category:
MAINS-VOLTAGE 400 V, 3-PH, 28A
OUTPUT CURRENT 30 – 105 A
DUTY CYCLE @ 40°C 80% @ 105 A
DIMENSIONS WITH HANDLES 592mm D; 274mm W; 508mm H
ENGINE DRIVE REQUIREMENT 30 kW for full 105 A output
Brands

HYPERTHERM

Product Types

Hand System
