FRONIUS FORTIS: THE FORTIS FOR EVERYONE
High performance, simplified. Built to deliver power, precision, and reliability for every application.
Fortis Series for Your Various Welding Needs
The Fortis series has been developed to adapt perfectly to dynamic welding conditions. With up to 240 optimised welding characteristics specifically developed for steel construction, Fortis delivers reliable and stable welding performance.
SMENCO supplies the complete Fronius Fortis range in Australia backed by local sales support, service, repairs, and genuine accessories.
Highlights of the Fortis
Reliable and Powerful
Excellent ignition properties and a constant arc allow the system to cover a wide range of applications.
Welding Made Easy
A clear, digital user interface keeps all key welding parameters visible at a glance.
Multiprocess
Fortis welding machines with multiprocess functionality combine MIG/MAG, TIG and MMA welding in one device.
Connectivity
Compatible with WeldCube Air and WeldCube Premium, equipped with Bluetooth remote and compatibility with welding accessories.
Designed with Sustainability in Mind
The Fortis series contains 53% recycled aluminium to help reduce its ecological footprint.
MIG/MAG
Welding Functions
Pulse Welding
Controlled and fast
Enables pulsed arc welding with low spatter and a variable working range from thin to thick sheets.
SynchroPulse
Seam rippling
Allows easy adjustment of energy input, making out-of-position welding and aluminium applications easier.
Stitch Welding
Low material distortion
Adjustable welding and pause times reduce heat input, helping to minimise material distortion on thin sheets.
TIG DC
Welding Functions
TIG Pulse Welding
Improves seam appearance and control, especially when welding thin materials or working in tight spaces.
Touchdown Ignition
An alternative to high-frequency ignition that improves user-friendliness with no restrictions on the area of application.
TAC Taking Function
Uses pulsed currents to oscillate the weld pool, simplifying tacking and reducing tacking time, particularly on thin materials.
MMA Welding
Welding Functions
HotStart
Temporarily increases current during ignition to improve electrode starting, especially with rutile and cellulose electrodes.
Arc-Force Dynamic
Supports stable welding with basic electrodes by preventing sticking during low-current welding.
Anti-Stick
Interrupts the welding process if the electrode sticks, preventing electrode burn-out and weld seam faults.

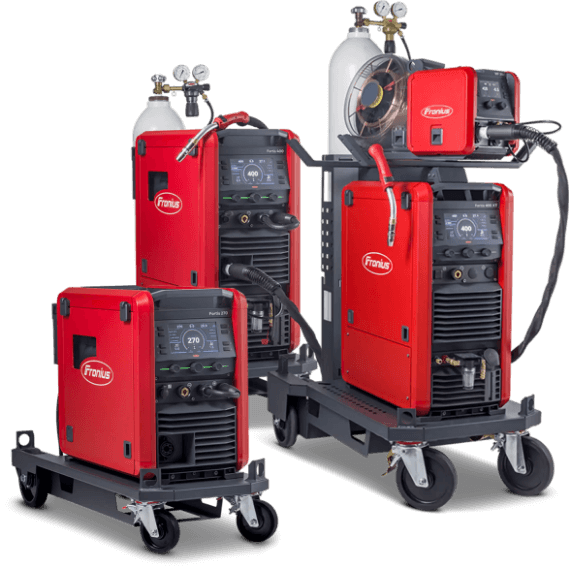

Fortis Products
Compact or Split – one system with countless possibilities.
Browse the complete Fortis lineup and find the right system for your materials, processes, and duty cycle.
Technical Specifications
Overview of technical specifications across Fortis 270, 320, 400 and 500 power categories, including Compact, Split and XT variants.
| Fortis 270 | Fortis 320 | Fortis 400 | Fortis 500 | |
|---|---|---|---|---|
|
Compact |
✓* |
✓** |
✓ |
✓ |
|
Split |
— |
✓ |
✓ |
✓ |
|
Duo |
— |
✓*** |
✓ |
✓ |
|
Gas-cooled |
✓ |
✓ |
✓ |
✓ |
|
Water-cooled |
— |
✓ |
✓ |
✓ |
|
400 V |
✓ |
✓ |
✓ |
✓ |
|
XT 200-600 V |
✓ |
✓ |
✓ |
✓ |
|
600 V |
— |
— |
✓ |
✓ |
* Fortis 270 only available in low housing;
** Fortis 320 all-in-one available in low (gas-cooled only) and high housing (optional water cooling or ToolBox);
*** Duo configuration only possible in high housings
Special Fortis Package
For a limited time, SMENCO is offering two complete Fortis 270C packages for $9,368 each,
no variations (excluding GST and delivery).
Fortis 270C Pulse
Standard Package
Weld Process Standard & Pulse
Inclusions:
- MTG 250i /FSC/UD/4,5m/45°/LED
- Torch basic kit for 1.0mm
- Contact tip 1.0/M6/ø8x24 10pcs
- 4 x feed roller U 0.9/1.0
- Earth cable 35mm2 x 5m
Fortis 270C Pulse
Aluminum Package
Weld Process Pulse (standard optional extra)
Inclusions:
- MTG 320i /FSC/UD/3,5m/45°/LED
- Torch basic kit for aluminum wire 1.2mm
- Contact tip 1.2/M8x1.5/ø10x32 AI 10pcs
- 4 x feed roller U 1.2
- Earth cable 35mm2 x 5m
Maximum Connectivity
Software Highlight
Bluetooth
For connecting wireless remote controls and compatible welding helmets.
WiFi
Enables network capability for updates and data documentation without Ethernet.
NFC
optional
For user management and easy locking and unlocking of the welding system using cards or RFID tags.
Data Management
Software Highlight
Weldcube Navigator
Visually guides welders through jobs, automatically sets predefined parameters and helps prevent errors and rework.
Weldcube Air
Cloud-based solution providing an overview of welding machines, procedure specifications and key welding figures.
Weldcube Premium
Advanced equipment management, parameter monitoring and documentation for stable and verifiable production processes.
User Interface
Software Highlight
User Management
Integrated authorisation system assigns individual user rights and enables centralised management of multiple welding machines.
Keylock
Prevents inadvertent changes to settings and ensures constant welding parameters during operation.
Welding Parameter Wizard
Recommends ideal parameter settings and allows precise adaptations, reducing errors while increasing efficiency.
Clear operation.
Maximum connectivity.
The Fortis series features a clear, digital user interface designed to keep key welding parameters visible at a glance.
Backed by SMENCO Service
and Support
When you purchase Fronius Fortis equipment from SMENCO, you’re not just investing in more than a welding system, you’re also gaining full Australian after-sales backing.
- Nationwide authorised service network
- Genuine Fronius parts and accessories
- Certified Fronius repair and maintenance centres
- Technical support from experienced welding specialists
- Operator training and application guidance
- Local warranty and long-term product support
Frequently Asked Questions
Fronius Fortis machines are designed to weld mild steel, stainless steel, and aluminium, covering a broad range of industrial applications and material thicknesses. This capability is supported by up to 240 optimised welding characteristics developed for diverse welding conditions.
Yes. With advanced functions such as Pulse and SynchroPulse, the Fortis series provides excellent arc control, reduced spatter, and high-quality results when welding aluminium and other sensitive materials.
Standard Fronius Fortis models are designed for 400 V input power. XT variants offer extended flexibility with support for 200–600 V input, making them suitable for different sites, generators, and international operating environments.
Yes. The Fortis series is fully compatible with Fronius WeldCube Air and WeldCube Premium, enabling digital documentation, parameter monitoring, guided workflows, and centralised welding data management.
The ideal model depends on your materials, required output, production demands, and expected duty cycle. SMENCO specialists can review your application and recommend the most suitable Fortis configuration for your operation.
SMENCO provides comprehensive local support for the Fortis series, including a nationwide service network, genuine Fronius parts, certified repair centres, technical assistance, and local warranty coverage.
LIMITED-EDITION FORTIS T-SHIRT
We’re giving away t-shirts to the first 50 buyers of the Fronius Fortis.
