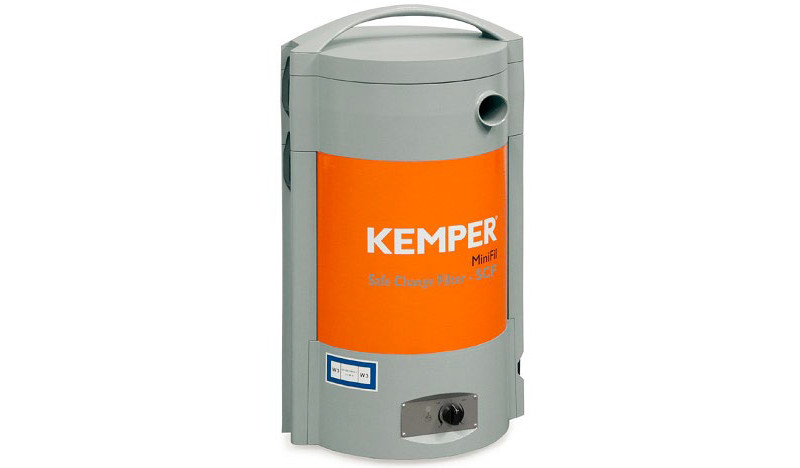

MiniFil High Vacuum Unit

Medium duty use

The compact MiniFil high-vacuum extraction unit for medium amounts of smoke and dust ensures high mobility for frequently changing workplaces with on torch extraction or extraction nozzles. The integrated automatic start/stop and the contamination-free filter change make the MiniFil especially simple and safe to use. Suitable for all welding fumes including stainless steel with Cyclone prefilter to extend life of filter cartridge.

APPLICATIONS:
– Also suitable for high-alloy steel
– Medium levels of smoke and dust
– Occasional to frequent use
– Nozzles, funnel and torch extraction

BENEFITS:
– Energy-saving operation with integrated automatic start/stop function for AC/alternating current
– Increased safety with safe filter change
– Ideal for changing workplaces due to its low weight and optional trolley
– Optimal adjustment to the welding process with stepless speed control

PROPERTIES:
– Filter monitoring
– Stepless speed control
– Safe Change Filter
– Start/Stop-Automatic for alternating current
– Spark separator

ACCESSORIES:
– Trolley
– Various hose lengths
– Various extraction nozzles

Category:
FILTER
FILTER STAGES 3
FILTER METHOD Disposable filter
FILTER SURFACE 12 m²
TYPE OF FILTER Safe Change Filter
FILTER MATERIAL Non-woven polyester
FILTER EFFICIENCY > 99 %
FILTER CLASS H13
ADDITIONAL FILTERS Cyclone pre-filter
BASIC DATA
EXTRACTION CAPACITY 150 m³/h
DIMENSIONS (W X D X H) 425 x 365 x 790 mm
WEIGHT 20 kg
TURBINE 2pce. each 1kW
MOTOR POWER 2 kW
POWER SUPPLY 1 x 230 V / 50 Hz
RATED CURRENT 10 A
NOISE LEVEL 74 dB(A)
ADDITIONAL INFORMATION
IFA-CERTIFICATION W3-Approved
FAN TYPE Suction turbine
HOSE CONNECTION Ø 45 mm
Brands

KEMPER

Product Types

Portable
