Hypertherm

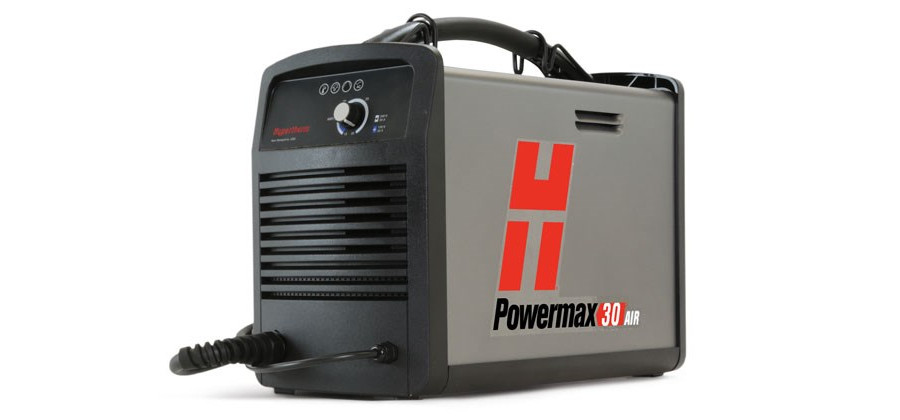

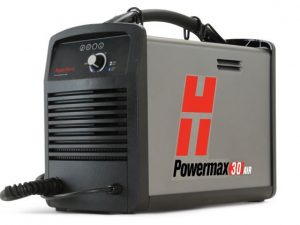

Powermax30 AIR Plasma System

Easy to set up with an Internal Compressor

Despite its small size, the Powermax30® AIR delivers big performance. The smallest, lightest handheld plasma cutting system in its class, it includes its own built-in air compressor, so you can use the Powermax30 AIR anywhere there’s single-phase power. Just plug it in, attach the work clamp and you’re ready to cut.

Easy to set up and operate:

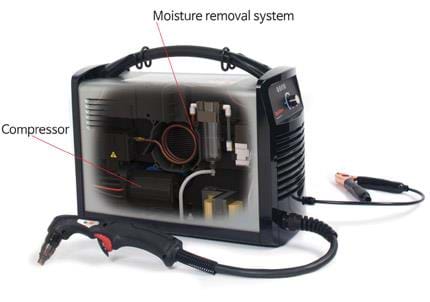

– Internal compressor eliminates the need for an external air compressor and filter
– Plug into any 120 or 240 V power (convenient Auto-Voltage™ technology and plug adapters included)

Superior performance in a compact package:
– Patent-pending consumable design enables consistent cutting by optimizing the airflow from the compact, internal compressor
– Quickly cut metal grate or rusted metal without retriggering with the continuous pilot arc feature
– Fast cutting speeds and superior cut quality let you finish jobs quicker, with fewer secondary operations

Exceptional versatility:
– Just one tool is all you need to cut a variety of metal types and thicknesses
– Small size and light weight let you take the Powermax30 AIR to the work, rather than bringing the work to the system – an ideal solution for a wide range of cutting applications
– Built to withstand heavy-duty use in the most demanding environments

MAINS-VOLTAGE 240 V, 1-PH, 15 A
OUTPUT CURRENT 15-30 A
DUTY CYCLE @ 40°C 35% @ 30A
DIMENSIONS WITH HANDLES 420mm D; 195mm W; 333mm H
ENGINE DRIVE REQUIREMENT 5.5 kW for full 30 A output
Brands

Hypertherm

Product Types

Hand System

System information

Applications
Drag cutting
Drag cutting
For dragging the torch directly across the work piece

Unsupported applications

Extended reach cutting
Extended reach cutting
For improved visibility and accessibility when cutting in confined spaces
Extended reach gouging
Extended reach gouging
For improved visibility and accessibility when gouging in confined spaces
Fine feature cutting
Fine feature cutting
For narrow kerf width with minimal dross and heat affected zone
Flush cutting
Flush cutting
For cutting closer to base materials using a 45 degree
Marking
Marking
For scoring, indicating part identification, hole or weld locations
Max control gouging
Max control gouging
For precise metal removal, shallower gouge profiles and light metal washing
Max removal gouging
Max removal gouging
For aggressive metal removal, deep gouge profiles, and extreme metal washing
Mechanized cutting
Mechanized cutting
For portable automation and table cutting
Precision gouging
Precision gouging
For spot and tack weld removal at very low output current (<25 A)
Benefits

Easy to set up and operate

  • Internal compressor eliminates the need for an external air compressor and filter
  • Plug into any 120 or 240 V power (convenient Auto-Voltage™ technology and plug adapters included)

Superior performance in a compact package

  • Patent-pending consumable design enables consistent cutting by optimizing the airflow from the compact, internal compressor
  • Quickly cut metal grate or rusted metal without retriggering with the continuous pilot arc feature
  • Fast cutting speeds and superior cut quality let you finish jobs quicker, with fewer secondary operations

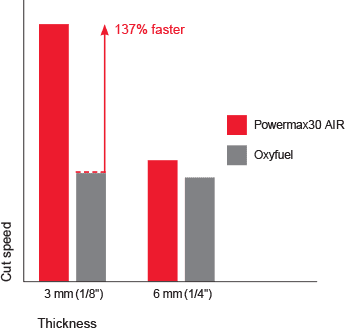

Relative cut performance on mild steel (chart)


Exceptional versatility

  • Just one tool is all you need to cut a variety of metal types and thicknesses
  • Small size and light weight let you take the Powermax30 AIR to the work, rather than bringing the work to the system – an ideal solution for a wide range of cutting applications
  • Built to withstand heavy-duty use in the most demanding environments
Specifications
Input voltages 120-240 V, 1-PH, 50/60 Hz
Input current @ 2.5 kW 120-240 V, 1-PH, 29-15 A
Output current 15-30 A
Rated output voltage 83 VDC
Duty cycle @ 40°C (104°F) 35%, 240 V
20%, 120 V
Open circuit voltage (OCV) 256 VDC
Dimensions with handles 420 mm (16.5″) D; 195 mm (7.7″) W; 333 mm (13.1″) H
Weight w/ 4,5 m (15′) torch 13.5 kg (29.8 lbs)
Input power cable length 3 m (10′)
Power supply type Inverter – IGBT
Engine drive requirement 5.5 kW for full 30 A output
Certifications CSA-certified for use in the Americas and Asia, except China CE, C-Tick, CU/GOST, Ukr, and Serbian — for use in Europe, Australia, Belarus, Kazakhstan, Russia, Serbia, Ukraine, and other countries where accepted.
Warranty Power supplies have a 3-year warranty and torches a 1-year warranty.

Cut capacity

Capacity Thickness Cut speed
Cutting
Recommended 8 mm (5/16″) 500 mm/min (20 ipm)
10 mm (3/8″) 250 mm/min (10 ipm)
Severance 16 mm (5/8″) 125 mm/min (5 ipm)

Cutting with 120 V input power

The maximum recommended output of 20 A, the cut capacities are:

  • 3 mm (10 gauge) at 762 mm/min (30 ipm)
  • 6 mm (1/4″) at 355 mm/min (14 ipm)
  • 10 mm (3/8″) at 125 mm/min (5 ipm)

Environmental stewardship is a core value of Hypertherm. Our Powermax products are engineered to meet and exceed global environmental regulations including the RoHS directive.

Buying information

Visit our where to buy page to find a potential partner, or contact Hypertherm directly if you need further assistance.

Power supply System part number with 4,5 m (15′) AIR T30 torch
120-240 V CSA1 088097
120-240 V CE2 088098

1 For use in the Americas and Asia, except China.
2 For use in countries that require CE or GOST marks.

System includes:

  • Power supply, AIR T30 hand torch with 4,5 m (15′) lead and work clamp with 4,5 m (15′) lead
  • 240 V/20 A plug with adapters for 120 V/15 A and 240 V/20 A circuits (CSA model)
  • Operator and safety manuals
  • 1 nozzle and 1 electrode
  • Carrying strap
