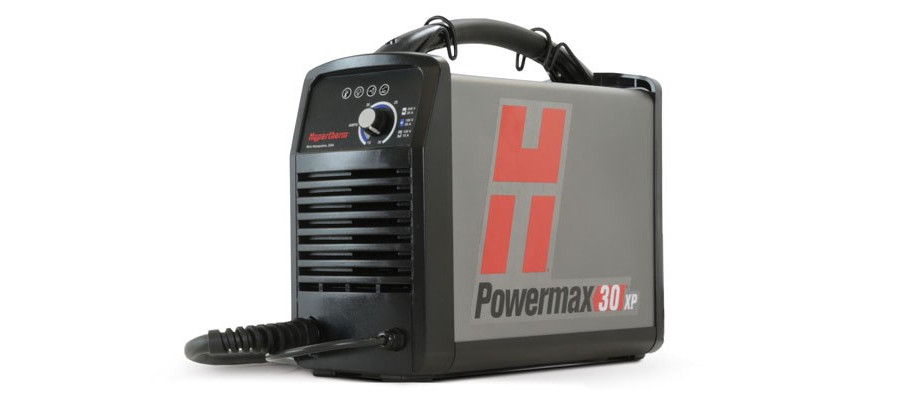

Powermax30 XP Plasma System

Superior performance in a compact package

The Powermax30® XP is a highly portable plasma cutting system that can handle a wide range of applications. A unique “two-in-one” design provides high-power capability for thick metal cutting, as well as the FineCut® consumables for detailed, thin metal cutting. The versatile 30 amp system uses air or nitrogen to cut electrically conductive metals, such as mild steel, stainless steel, or aluminum.

Easy to use:
– System includes everything you need to get you cutting quickly and easily
– Small size and light weight let you take the Powermax30 XP just about anywhere
– Plug into any 120 or 240 V power (convenient Auto-Voltage™ technology and plug adapters included)

Superior performance in a compact package:
– Fast cutting speeds and excellent cut quality let you finish jobs quicker, with fewer secondary operations
– Built to withstand heavy-duty use in the most demanding environments

“Two-in-one” design for maximum versatility:
– High-power cutting on thick metal
– FineCut consumables enable high quality cuts on thin metal, leaving a clean edge and a narrow kerf

REQUEST THIS PRODUCT

Specifications
Product Data

MAINS-VOLTAGE	240 V, 1-PH, 18.8 A
OUTPUT CURRENT	15-30 A
DUTY CYCLE @ 40°C	35% @ 30A
DIMENSIONS WITH HANDLES	356mm D; 168mm W; 305mm H

Brands	Hypertherm
Product Types	Hand System

System information

Applications

Drag cutting

For dragging the torch directly across the work piece

Extended reach cutting

For improved visibility and accessibility when cutting in confined spaces

Extended reach gouging

For improved visibility and accessibility when gouging in confined spaces

Fine feature cutting

For narrow kerf width with minimal dross and heat affected zone

Unsupported applications

Flush cutting

For cutting closer to base materials using a 45 degree

Fine feature cutting

For narrow kerf width with minimal dross and heat affected zone

Max control gouging

For precise metal removal, shallower gouge profiles and light metal washing

Max removal gouging

For aggressive metal removal, deep gouge profiles, and extreme metal washing

Mechanized cutting

For portable automation and table cutting

Precision gouging

For spot and tack weld removal at very low output current (<25 A)

Benefits

Easy to use

System includes everything you need to get you cutting quickly and easily
Small size and light weight let you take the Powermax30 XP just about anywhere
Plug into any 120 or 240 V power (convenient Auto-Voltage™ technology and plug adapters included)

Superior performance in a compact package

Fast cutting speeds and excellent cut quality let you finish jobs quicker, with fewer secondary operations
Built to withstand heavy-duty use in the most demanding environments

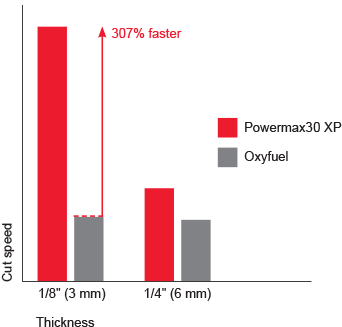

Relative cut performance on mild steel (chart)

“Two-in-one” design for maximum versatility

High-power cutting on thick metal
FineCut consumables enable high quality cuts on thin metal, leaving a clean edge and a narrow kerf

Specifications

Input voltages	120-240 V, 1-PH, 50/60 Hz
Input current @ 3.8 kW	120-240 V, 1-PH, 25-18.8 A
Output current	15-30 A
Rated output voltage	125 VDC
Duty cycle @ 40°C (104°F)	35%, 240 V 20%, 120 V
Open circuit voltage (OCV)	256 VDC
Dimensions with handles	356 mm (14.0″) D; 168 mm (6.6″) W; 305 mm (12.0″) H
Weight w/ 4,5 m (15′) torch	CSA: 9.7 kg (21.4 lbs) CE, CCC: 9.5 kg (21 lbs)
Gas Supply	Clean, dry, oil-free air or nitrogen
Recommended gas inlet flow rate / pressure	113.3 l/min (4 scfm) at 5.5 bar (80 psi)
Input power cable length	3 m (10′)
Power supply type	Inverter – IGBT
Engine drive requirement	5.5 kW for full 30 A output
Certifications	CSA-certified for use in the Americas and Asia, except China CE, C-Tick, CU/GOST, Ukr, and Serbian — for use in Europe, Australia, Belarus, Kazakhstan, Russia, Serbia, Ukraine, and other countries where accepted. CCC for use in China.
Warranty	Power supplies have a 3-year warranty and torches a 1-year warranty.

Environmental stewardship is a core value of Hypertherm. Our Powermax products are engineered to meet and exceed global environmental regulations including the RoHS directive.

Operating data

Capacity	Thickness	Cut speed
	Cutting
Recommended	10 mm (3/8″)	500 mm/min (20 ipm)
	12 mm (1/2″)	250 mm/min (10 ipm)
Severance	16 mm (5/8″)	125 mm/min (5 ipm)

Cutting with 120 V input power

Use FineCut nozzle and deflector for cutting at 120 V input power. When operating at the maximum recommended output of 25 A, the cut capacities are:

6 mm (1/4″) at 482 mm/min (19 ipm)
10 mm (3/8″) at 203 mm/min (8 ipm)
12 mm (1/2″) at 76 mm/min (3 ipm)

Buying information

Visit our where to buy page to find a potential partner, or contact Hypertherm directly if you need further assistance.

Power supply	System part number with 4,5 m (15′) Duramax LT torch	System part number with 4,5 m (15′) Duramax LT torch and carry case
120-240 V CSA¹	088081	088080
120-240 V CE²	088082	088083
120-240 V CCC³	088084

¹ For use in the Americas and Asia, except China.
² For use in countries that require CE or GOST marks.
³ For use in China.

System includes:

Power supply, 4,5 m (15′) Duramax LT hand torch with standard consumables, 4,5 m (15′) work clamp
240 V/20 A plug with adapters for 120 V/15 A and 240 V/20 A circuits (CSA models)
Operator and safety manuals
Consumable kit with 1 standard nozzle, 1 electrode, 1 FineCut nozzle and 1 FineCut deflector
Plastic carry case
Carrying strap
