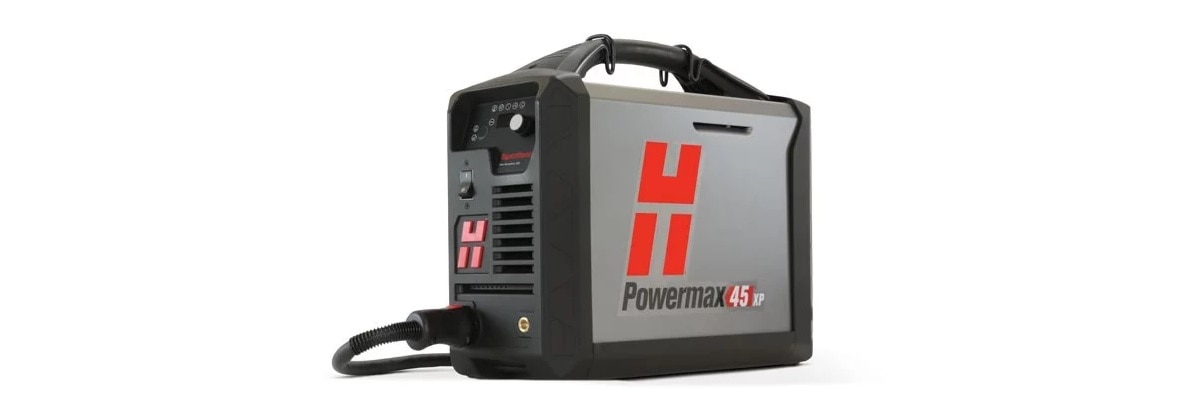

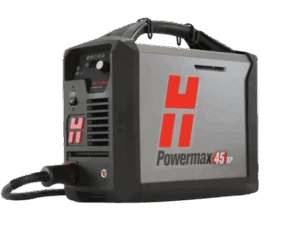

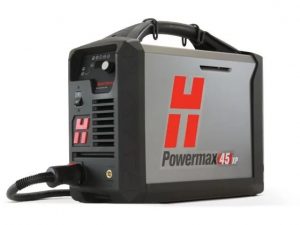

Powermax45 XP Plasma System

Meet the newest member of our best-selling line of Powermax® portable plasma systems.

The Powermax45® XP delivers increased cut capacity – up to 16 mm metal – as well as faster cut speeds, and automatic gas adjustment for quick, simple setup and operation. New Duramax® Lock torches support handheld and mechanized cutting of a wider range of metal thicknesses, along with precision gouging such as spot weld removal, and marking capabilities.

Easy to use:
– Small size and light weight provide exceptional portability for a 16 mm rated cutting system
– Patented drag-cutting technology makes the Powermax45 XP easy to use – even for first-time operators
– Smart Sense™ technology ensures that air pressure is always correctly set

Outstanding versatility:
– CNC interface and FastConnect™ torch connection allows both handheld and mechanized operation
– A wide range of torch and consumable styles to choose from for both handheld and automated processes
– Extensive array of application capabilities via specialty consumables for fine feature cutting, extended reach cutting, gouging, precision gouging, and marking

Maximum productivity:
– Finish jobs faster, with cut speeds 1.5 times greater than oxyfuel on 6 mm mild steel
– Superior cut and gouge quality reduces time for grinding and edge preparation
– New torch disable switch feature allows faster, easier changeout of consumables

Rugged and reliable:
– Duramax® Lock torches are designed for high-impact and heat resistance
– SpringStart™ technology ensures consistent starting and optimum torch performance
– Hypertherm Certified™ reliability ensures peak performance even in the most demanding environments

Designed for low environmental impact:
– Plasma cutting efficiency is 11% better than its predecessor, enabling you to cut more steel with less power, in less time
– All plasma system components are recyclable
– 14% lighter than its predecessor and delivers more cutting power

OUTPUT CURRENT 10 – 45A
MAINS-VOLTAGE 230 V, 1-PH, 33 A*
OR
400 V, 3-PH, 10 A
DUTY CYCLE @ 40° C 50% @ 45 A, 230 V, 1-PH
60% @ 41 A, 230 V, 1-PH
100% @ 32 A, 230 V, 1-PH
50% @ 45 A, 400 V, 3-PH
60% @ 41 A, 400 V, 3-PH
100% @ 32 A, 400 V, 3-PH
DIMENSIONS WITH HANDLES 442mm D; 173mm W; 35 mm H
ENGINE DRIVE REQUIREMENT 12.5 kVA (10 kW) for full 45 A output
ELECTRICAL EFFICIENCY 88%
*Single phase units need to hard wired into power supply
Brands

Hypertherm

Product Types

Hand System

System information

Applications

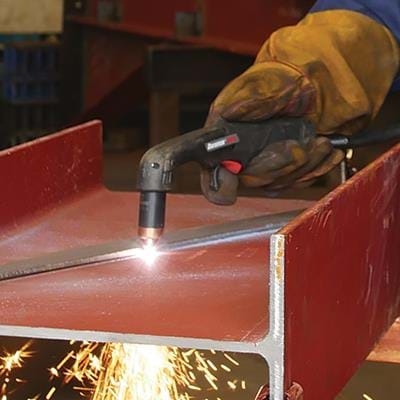

Drag cutting
Drag cutting
For dragging the torch directly across the work piece
Fine feature cutting
Fine feature cutting
For narrow kerf width with minimal dross and heat affected zone
Flush cutting
Flush cutting
For cutting closer to base materials using a 45 degree
Max control gouging
Max control gouging
For precise metal removal, shallower gouge profiles and light metal washing
Max removal gouging
Max removal gouging
For aggressive metal removal, deep gouge profiles, and extreme metal washing

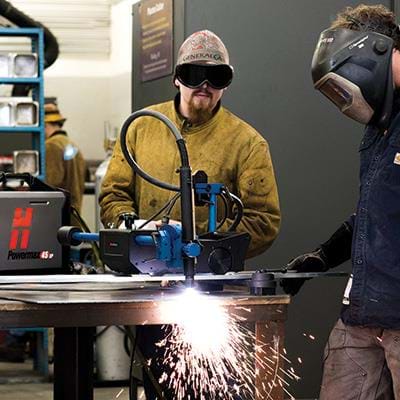

Mechanized cutting
Mechanized cutting
For portable automation and table cutting
Extended reach gouging
Extended reach gouging
For improved visibility and accessibility when gouging in confined spaces
Marking
Marking
For scoring, indicating part identification, hole or weld locations
Precision gouging
Precision gouging
For spot and tack weld removal at very low output current (<25 A)
Benefits

Easy to use

  • Small size and light weight provide exceptional portability for a 16 mm (5/8″) rated cutting system
  • Patented drag-cutting technology makes the Powermax45 XP easy to use – even for first-time operators
  • Smart Sense™ technology ensures that air pressure is always correctly set

Outstanding versatility


Maximum productivity

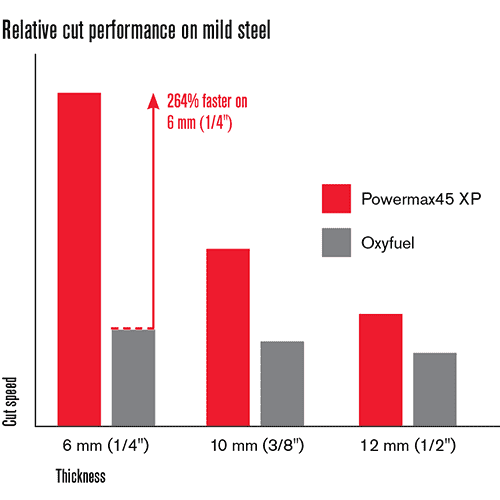

  • Finish jobs faster, with cut speeds 1.5 times greater than oxyfuel on 6 mm (1/4″) mild steel
  • Superior cut and gouge quality reduces time for grinding and edge preparation
  • New torch disable switch feature allows faster, easier changeout of consumables

Rugged and reliable

  • Duramax® Lock torches are designed for high-impact and heat resistance
  • SpringStart™ technology ensures consistent starting and optimum torch performance
  • Hypertherm Certified™ reliability ensures peak performance even in the most demanding environments

Designed for low environmental impact

  • Plasma cutting efficiency is 11% better than its predecessor, enabling you to cut more steel with less power, in less time
  • All plasma system components are recyclable
  • 14% lighter than its predecessor and delivers more cutting power

Learn more about improvements that have been made

Specifications
Input voltages
(± 10%)
CSA 200–240 V, 1-PH, 50–60 Hz
OR
480 V, 3-PH, 50–60 Hz1
CE/CCC 230 V, 1-PH, 50–60 Hz
OR
400 V, 3-PH, 50–60 Hz
Input current
@ 6.5 kW
CSA 200–240 V, 1-PH, 39/32 A
OR
480 V, 3-PH, 9.4 A1
CE/CCC 230 V, 1-PH, 33 A
OR
400 V, 3-PH, 10 A
Output current 10–45 A
Rated output voltage 145 VDC
Duty cycle
@ 40° C (104° F)
CSA 50% @ 45 A, 200–240 V, 1-PH
60% @ 41 A, 200–240 V, 1-PH
100% @ 32 A, 200–240 V, 1-PH
50% @ 45 A, 480 V, 3-PH
60% @ 41 A, 480 V, 3-PH
100% @ 32 A, 480 V, 3-PH
CE/CCC 50% @ 45 A, 230 V, 1-PH
60% @ 41 A, 230 V, 1-PH
100% @ 32 A, 230 V, 1-PH
50% @ 45 A, 400 V, 3-PH
60% @ 41 A, 400 V, 3-PH
100% @ 32 A, 400 V, 3-PH
Open circuit voltage (OCV) 275 VDC (200–240 V, CSA/CE/CCC and 480 V, CSA)
265 VDC (400 V CE/CCC)
Dimensions with handles 442 mm (17.4″) D; 173 mm (6.8″) W; 357 mm (14.1″) H
Weight with 6.1 m (20′) torch CSA 14 kg (31 lbs.)
CE/CCC 15 kg (33 lbs.)
Gas supply Cutting: air (clean, dry and oil-free), nitrogen, F5
Gouging: air (clean, dry and oil-free), nitrogen, F5
Marking: air (clean dry and oil-free) argon
Recommended
gas inlet
flow rate/pressure
188 I/min (400 scfh) @ 5,9 bar (90 psi)
Input power cable length 3 m (10′)
Power supply type Inverter – IGBT
Engine drive requirement 12.5 kVA (10 kW) for full 45 A output
Electrical efficiency 88%
Recyclability 100%
Certifications CSA certified for use in the Americas and Asia, except China. CCC for use in China. CE, RCM, GOST-TR, UkrSEPRO, and Serbian AAA for use in Europe, Australia, Belarus, Kazakhstan, Russia, Serbia, Ukraine, and other countries where accepted.
Warranty Power supply: 3-year
Torch: 1-year

1 For use in North America only.

Engine-driven generator operation

Engine drive rating System output current Performance (arc stretch)
10 kW 45 A Full
8 kW 45 A Limited
6 kW 30 A Full

Cut capacity

Capacity Thickness Cut speed
Cutting
Recommended 16 mm (5/8″)
22 mm (7/8″)
500 mm/min (20 ipm)
250 mm/min (10 ipm)
Severance (hand cutting) 29 mm (1-1/8″) 125 mm/min (5 ipm)
Pierce* 12 mm (1/2″)

* Pierce rating for handheld use or with automatic torch height control.

Capacity Metal removal rate Groove profile
Gouging
Typical gouge 3,4 kg (7.5 lbs.) per hour 3,2 mm (.12″) D x 6,8 mm (.26″) W

Production cut chart

Material Thickness
inches
Current
amps
Production cut speed*
ipm
Mild steel 10 GA 45 181
1/4 45 72
3/8 45 38
1/2 45 24
5/8 45 16
Stainless steel 10 GA 45 134
1/4 45 59
3/8 45 29
1/2 45 19
5/8 45 13
Aluminum 1/8 45 263
1/4 45 104
3/8 45 42
1/2 45 26
5/8 45 14
Material Thickness
mm
Current
amps
Production cut speed*
mm/min
Mild steel 3 45 5590
6 45 2110
10 45 920
12 45 690
16 45 400
Stainless steel 3 45 4725
6 45 1695
10 45 870
12 45 540
16 45 320
Aluminum 3 45 7120
6 45 3095
10 45 1015
12 45 745
16 45 340

Production cut speeds are the results of Hypertherm’s laboratory testing. For optimum cut performance, actual cutting speeds may vary based on different cutting applications. Refer to the operator manual for more details.

Environmental stewardship is a core value of Hypertherm. Our Powermax products are engineered to meet and exceed global environmental regulations including the RoHS directive.

Buying information

Visit our where to buy page to find a potential partner, or contact Hypertherm directly if you need further assistance.

Standard configurations

Below are some of the most common system configurations which include a power supply, torch and work cable.

75° hand torch 75° and 15° hand torch
Power supplies Voltage configuration 6,1 m (20′) lead 15,2 m (50′) lead 6,1 m (20′) leads
without remote pendant
Standard power supply 200–240 V CSA1 088112 088114
Power supply with CPC port and voltage divider 200–240 V CSA1 088113 088115 088124
Standard power supply 480 V CSA1 088126 088128
Power supply with CPC port and voltage divider 480 V CSA1 088127 088129
Standard power supply 230 V CE/CCC3 088130 088132
Power supply with CPC port and voltage divider 230 V CE/CCC3 088131 088133
Standard power supply 400 V CE/CCC3 088144 088146
Power supply with CPC port and voltage divider 400 V CE/CCC3 088145 088147
180° full-length machine torch 180° full-length machine torch and 75° hand torch
Power supplies Voltage configuration 7,6 m (25′) lead 10,6 m (35′) lead 15,2 m (50′) lead 6,1 m (20′) and 7,6 m (25′) leads
with remote pendant without remote pendant with I/O cables (no pendant) with remote pendant with remote pendant without remote pendant with I/O cables (no pendant) with remote pendant
Power supply with CPC port and voltage divider 200–240 V CSA1 088116 088121 088117 088118 088122 088123
Power supply with CPC port, voltage divider, and serial port 200–240 V CSA1 088119 088120
Power supply with CPC port and voltage divider 230 V CE/CCC3 088134 088141 088135 088136
Power supply with CPC port, voltage divider, and serial port 230 V CE/CCC3 088139 088140
Power supply with CPC port and voltage divider 400 V CE/CCC3 088148 088155 088149 088150
Power supply with CPC port, voltage divider, and serial port 400 V CE/CCC3 088153 088154

1 For use in the Americas and Asia, except China.
2 For use in North America only.
3 For use in all regions except North America.

Custom configurations

Select a power supply, torch, torch consumable kit, work cable and other components.

Power supply options

Standard power supply Power supply with CPC port and voltage divider Power supply with CPC port, voltage divider and serial port
200–240 V CSA1 088092 088104 088105
480 V CSA2 088095 088110 088111
230 V CE/CCC3 088093 088106 088107
400 V CE/CCC3 088094 088108 088109

1 For use in the Americas and Asia, except China.
2 For use in North America only.
3 For use in all regions except North America.

Starter kit consumable options

When ordering a customized system you can select from the following consumable kits:

Handheld Mechanized Mechanized with ohmic retaining cap
Kit 428559 428560 428561

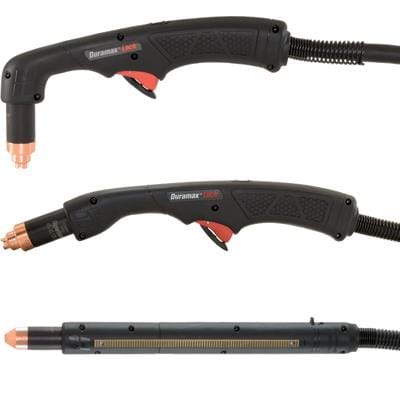

Duramax® Lock torch options

Duramax robotic and mini machine torches, along with Duramax Hyamp® torches are also compatible with the Powermax45 XP.

Hand torches Machine torches Robotic torches
Cable length 75° 15° 180° Mini 180° 45° 90° 180°
4,5 m (15′) 059476* 059481*
6,1 m (20′) 088164 088162
7,6 m (25′) 088167 059482* 059464* 059465* 059466*
10,6 m (35′) 088168 059483*
15,2 m (50′) 088165 088163 088169 059484*
22,8 m (75′) 059475* 059472* 059480*

* Without torch disable switch

Cable options

Work cables Control cables
Cable length Hand clamp Remote pendant CNC, spade connector, divided voltage CNC, spade connector, no divided voltage RS-485 Serial comm, unterminated RS-485 Serial comm, D-sub
7,6 m (25′) 223595 128650 228350 023206 223236 223239
15,2 m (50′) 223596 128651 228351 023279 223237 223240
22,8 m (75′) 223127 128652

Looking for industry-leading welding products and solutions? Send us an email or give us a call to learn more.

fronius logo eutectic logo kemper logo optrel logo bore repair systems logo bohler logo steeltailor logo huntingdon logo hypertherm logo plazmax logo
File not found
  • Thanks For Your Request

    Please provide us quick details of your request

    • This field is hidden when viewing the form
      • This field is hidden when viewing the form
    • This field is hidden when viewing the form
    • This field is for validation purposes and should be left unchanged.

    • Thanks for your Enquiry

      Tell us more by providing quick details below

      • This field is hidden when viewing the form
        • This field is hidden when viewing the form
      • This field is hidden when viewing the form
      • This field is for validation purposes and should be left unchanged.

      • Thanks for your Enquiry

        Tell us more by providing quick details below

        • This field is hidden when viewing the form
          • This field is hidden when viewing the form
        • This field is hidden when viewing the form
        • This field is for validation purposes and should be left unchanged.

        • Thanks for your Enquiry

          Tell us more by providing quick details below

          • This field is hidden when viewing the form
          • This field is hidden when viewing the form
        • This field is hidden when viewing the form
        • This field is for validation purposes and should be left unchanged.

        • Thanks for your Enquiry

          Tell us more by providing quick details below

          • This field is hidden when viewing the form
            • This field is hidden when viewing the form
          • This field is hidden when viewing the form
          • This field is for validation purposes and should be left unchanged.

          • Thanks for your Enquiry

            Tell us more by providing quick details below

            • This field is hidden when viewing the form
              • This field is hidden when viewing the form
            • This field is hidden when viewing the form
            • This field is for validation purposes and should be left unchanged.

            • Thanks for your Enquiry

              Tell us more by providing quick details below

              • This field is hidden when viewing the form
                • This field is hidden when viewing the form
              • This field is hidden when viewing the form
              • This field is for validation purposes and should be left unchanged.

              • Thanks for your Enquiry

                Tell us more by providing quick details below

                • This field is hidden when viewing the form
                  • This field is hidden when viewing the form
                • This field is hidden when viewing the form
                • This field is for validation purposes and should be left unchanged.

                • Thanks for your Enquiry

                  Tell us more by providing quick details below

                  • This field is hidden when viewing the form
                    • This field is hidden when viewing the form
                  • This field is hidden when viewing the form
                  • This field is for validation purposes and should be left unchanged.

                  • Thanks For Requesting Our Products

                    Please provide us quick details before requesting the proudct

                    • This field is hidden when viewing the form
                      • This field is hidden when viewing the form
                    • This field is for validation purposes and should be left unchanged.

                    Thanks for your Enquiry

                    Tell us more by providing quick details below

                    Name(Required)
                    This field is hidden when viewing the form
                    This field is hidden when viewing the form
                    This field is hidden when viewing the form
                    This field is for validation purposes and should be left unchanged.

                    • ENQUIRE NOW

                        • This field is hidden when viewing the form
                      • This field is for validation purposes and should be left unchanged.

                      Scroll to Top
