MAINS-VOLTAGE | 400 V 3-PH, 19.5 A |
OUTPUT CURRENT | 25 – 85 A |
DUTY CYCLE @ 40°C | 60% @ 85 A 100% @ 66 A |
DIMENSIONS WITH HANDLES | 500mm D; 234mm W; 455mm H |

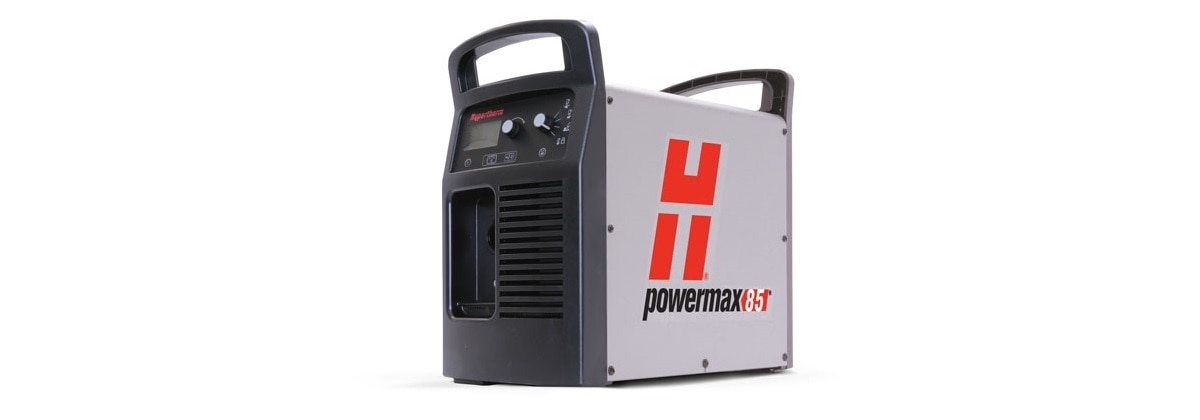

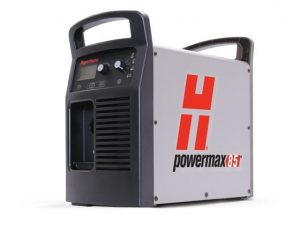

Powermax85 Plasma System
The premier system for cutting 25 mm, the Powermax85® has the same features and options as the Powermax65®, but with more power from an output current of 85 amps. Designed to maximize uptime and productivity, the system offers the latest technological innovations, such as Smart Sense™ technology to automatically adjust the gas pressure. With a variety of Duramax™ torch styles, operators can easily select exactly the right tool for the job: hand cutting or gouging, portable automation, X-Y table, and robotic cutting or gouging.
Maximum productivity:
– Finish jobs faster with cut speeds two and a half times greater than oxyfuel on 12 mm mild steel
– Superior cut and gouge quality let you spend less time on grinding and edge preparation
– Multiple, easy-to-use torch styles let you tackle a wide variety of jobs using the same system
Easy-to-use for cutting and gouging:
– No need to change the air pressure – Smart Sense™ technology ensures that it is always correctly set
– SpringStart™ technology ensures consistent starting and a more reliable torch
– Drag cut at full output with a patented shield that reduces dross buildup for smoother cutting
Rugged and reliable:
– Hypertherm Certified™ reliability ensures peak performance even in the harshest environments
-Duramax™ torches are designed for high-impact and heat resistance
Brands | Hypertherm |
---|---|
Product Types | Hand System |
System information
Affected power supply part numbers:
087106, 087107, 087068, 087104, 087105, 087067
Affected system part numbers:
087108, 087109, 087111, 087113, 087114, 087115, 087116, 087117, 087118, 087120, 087122, 087123, 087124, 087125, 087126, 087127, 087128, 087131, 087132, 087135, 087136, 087137, 087138, 087139, 087140, 087141, 087144, 087145, 087146, 087147, 087163, 087164
AVAILABILITY | |
---|---|
Power supply | ⊗ |
Original torch | ✔ |
Service parts | ✔ |
Consumables | ✔ |
Technical support | ✔ |
Input voltages | CSA | 200–480 V, 1-PH, 50/60 Hz 200–600 V, 3-PH, 50/60 Hz |
---|---|---|
CE | 380/400 V, 3-PH, 50/60 Hz | |
Input current @12.2 kW | CSA | 200/208/240/480 V, 1-PH, 70/68/58/29 A 200/208/240/480/600 V, 3-PH, 42/40/35/18/17 A |
CE | 380/400 V, 3-PH, 20.5/19.5 A | |
Output current | 25–85 A | |
Rated output voltage | 143 VDC | |
Duty cycle @ 40°C (104°F) | CSA | 60% @ 85 A, 230–600 V, 3-PH 60% @ 85 A, 480 V, 1-PH 50% @ 85 A, 240 V, 1-PH 50% @ 85 A, 200–208 V, 3-PH 40% @ 85 A, 200–208 V, 1-PH 100% @ 66 A, 230–600 V, 1/3-PH |
CE | 60% @ 85 A, 380/400 V, 3-PH 100% @ 66 A, 380/400 V, 3-PH |
|
Open circuit voltage (OCV) | CSA | 305 VDC |
CE | 270 VDC | |
Dimensions with handles | 500 mm (19.7″) D; 234 mm (9.2″) W; 455 mm (17.9″) H | |
Weight with 7.6 m (25′) torch | CSA | 32 kg (71 lbs.) |
CE | 28 kg (62 lbs.) | |
Gas supply | Clean, dry, oil-free air or nitrogen | |
Recommended gas inlet flow rate/pressure |
Cutting: 189 l/min (400 scfh, 6.7 scfm) @ 5.9 bar (85 psi) Gouging: 212 l/min (450 scfh, 7.5 scfm) @ 4.8 bar (70 psi) |
|
Input power cable length | 3 m (10′) | |
Power supply type | Inverter – IGBT |
Engine-driven generator operation
Engine drive rating | System output current | Performance (arc stretch) |
---|---|---|
20 kW | 85 A | Full |
15 kW | 70 A | Limited |
15 kW | 60 A | Full |
12 kW | 60 A | Limited |
12 kW | 40 A | Full |
8 kW | 40 A | Limited |
8 kW | 30 A | Full |
Cut capacity
Capacity | Thickness | Cut speed |
---|---|---|
Cutting | ||
Recommended | 25 mm (1″) | 500 mm/min (20 ipm) |
32 mm (1-1/4″) | 250 mm/min (10 ipm) | |
Severance (hand cutting) | 38 mm (1-1/2″) | 125 mm/min (5 ipm) |
Pierce * | 20 mm (3/4″) |
* Pierce rating for handheld use or with automatic torch height control.
Capacity | Metal removal rate | Groove profile |
---|---|---|
Gouging | ||
Typical gouge | 8,8 kg/hr (19.5 lbs./hr) |
5,8 mm D x 7,1 mm W (0.23″ D x 0.28″ W) |
Production cut chart
Material | Thickness | Current | Production cut speed * | ||
---|---|---|---|---|---|
inches | mm | amps | ipm | mm/min | |
Mild steel | 1/4 | 6 | 85 | 160 | 4400 |
1/2 | 12 | 85 | 56 | 1600 | |
3/4 | 20 | 85 | 29 | 680 | |
Stainless steel | 1/4 | 6 | 85 | 164 | 4600 |
1/2 | 12 | 85 | 48 | 1400 | |
3/4 | 20 | 85 | 24 | 570 | |
Aluminum | 1/4 | 6 | 85 | 172 | 4900 |
1/2 | 12 | 85 | 68 | 1930 | |
3/4 | 20 | 85 | 37 | 880 |
*Production cut speeds are the result of Hypertherm’s laboratory testing.
Production speeds are approximately 80% of maximum. For optimum cut quality, cutting speeds may vary based on different cutting applications. Refer to the operator manual for more details.
