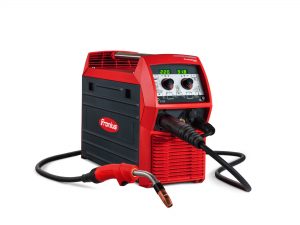

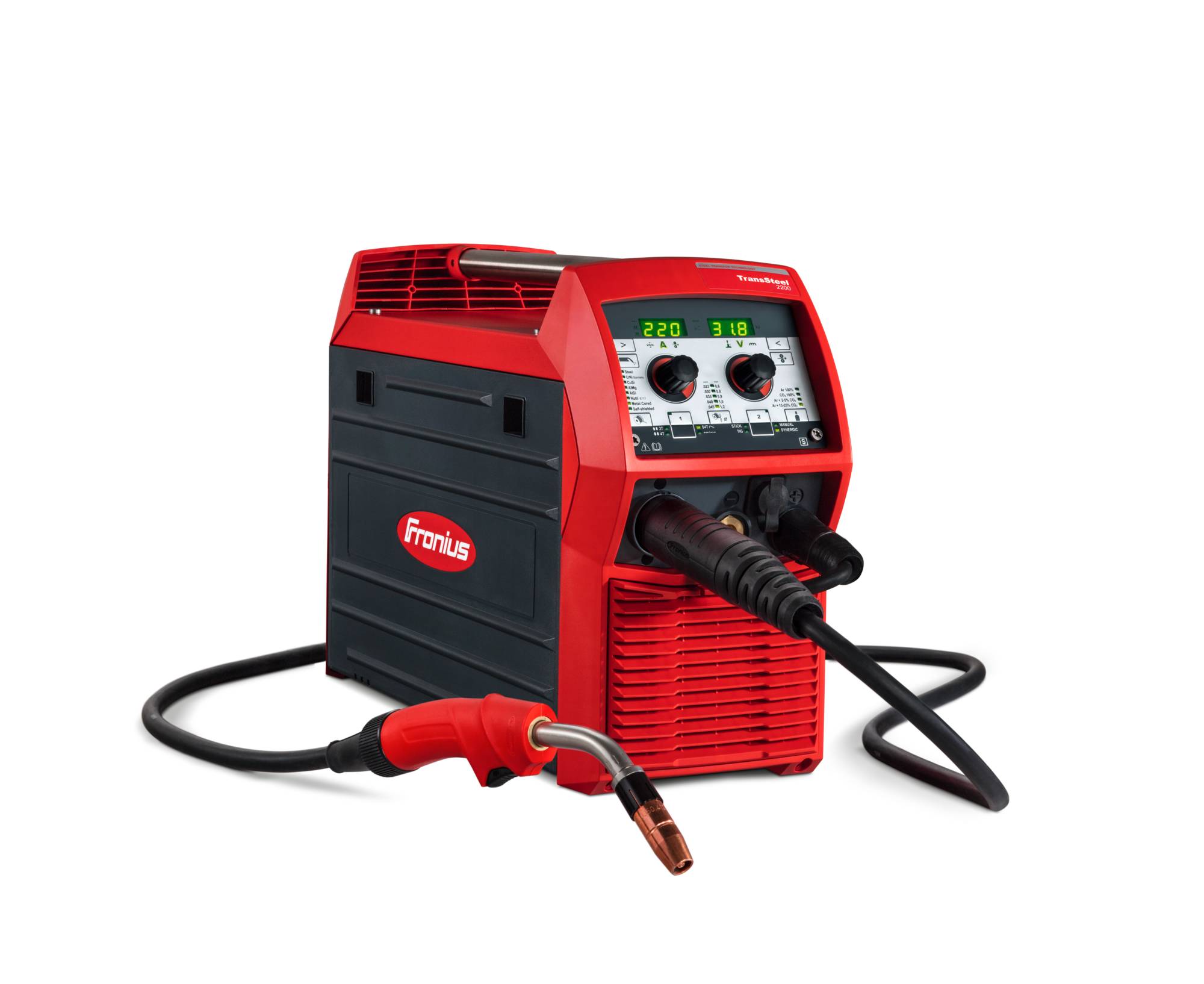

The TransSteel 2200 is a compact, 3-in-1 solution
It is the first single-phase inverter power source from Fronius that is also multiprocess-capable, bringing together MMA, MIG/MAG and TIG in a single device.
The TransSteel 2200 is characterized by the intelligent design of the device, ease of use, robustness and a high level of reliability.
Weighing only 15.5 kg, it is also one of the lightest devices on the market.
– Compact low weight design
– Integrated PFC allows for long mains cables
– Generator compatible
– D100 & D200 spools
– Spot & stitch welding settings
– Easy polarity change for gasless wires
– Tig torch with up/down
– 2nd gas valve for Tig welding
– S mark, CE mark, C Tick
– 3 years warranty with registration
| WELDING CURRENT | 10A to 230A |
| MAINS VOLTAGE | 230V |
| WELDING CURRENT / DUTY CYCLE [10MIN/40°C] | MIG/MAG 210A = 30% 170A = 60% 150A = 100% |
| WELDING CURRENT / DUTY CYCLE [10MIN/40°C] | TIG 180A = 35% 150A = 60% 130A = 100% |
| WELDING CURRENT / DUTY CYCLE [10MIN/40°C] | MMA/STICK 180A = 35% 150A = 60% 130A = 100% |
| Brands | Fronius |
|---|---|
| Product Types | Mig/Mag |
