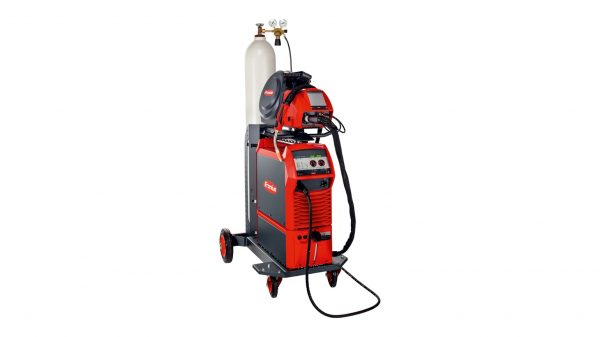

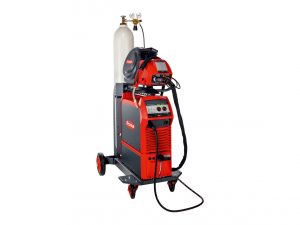

Fronius

TransSteel 5000 Synergic

Making life easier for structural steel fabricators

The TransSteel 5000 stands for reliability, the greatest possible ease of use and perfect steel welding. The lightweight, robust module with hosepack, welding torch and display ensures that the welding wire advances reliably. The Comfort Wire function automatically takes care of wire threading. The user can easily remove the portable wirefeeder and carry it to welding locations that are difficult to access. Irrespective of the position of the hosepack, the welding parameters remain stable. With an output of up to 500 A, the TransSteel 5000 welding system is available in both gas-cooled and water-cooled versions.

– Digital welding-process control
– 4 roller drive
– Gas or water cooled torch
– Synergic programmes
– Automatic burn-back control
– Electrode welding
– Digital display for welding amperage, welding voltage, thickness of material, wire feed speed
– Continuous power-adjustment possible directly from torch, with Up/Down torch
– 5 fast job memory keys (synergic-version)
– Dust filter
– Temperature controlled fan
– Earth leakage monitoring
– Remote-controllable
– S mark, CE mark, C Tick

WELDING CURRENT MAX. 500A
WELDING CURRENT MIN. 10A
WELDING CURRENT / DUTY CYCLE
[10MIN/40°C]
500A / 40%
420A / 60%
360A / 100%
OPERATING VOLTAGE 14.5V-39.5V
OPEN-CIRCUIT VOLTAGE 65.0V
MAINS FREQUENCY 50-60Hz
MAINS-VOLTAGE 3 x 380V / 400V / 460V
MAINS FUSE 35A
