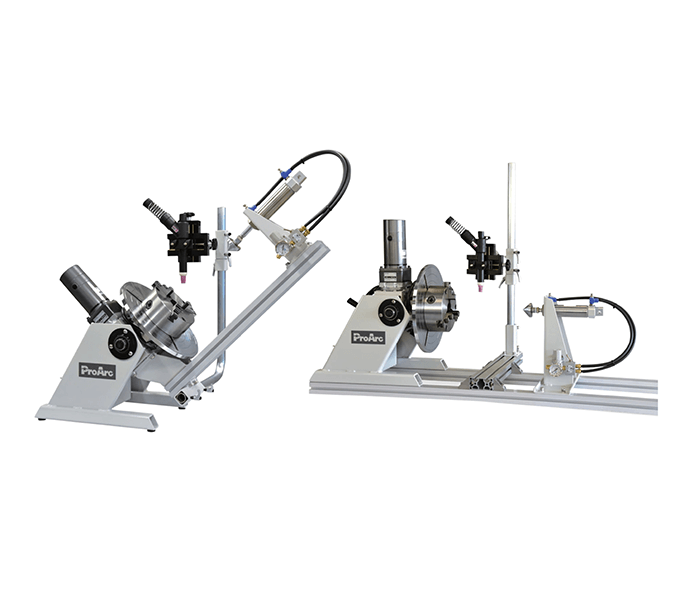

E.Z.ARC System

E.Z.ARC System

ProArc deliver the new generation E.Z.Arc circumferential welding system with the widest choice of components, we help customer to create your automatic welding system more easily and perform best welding quality.

Welding Positioners Specification
Model Unit PT-103/104 PT-203/204
Power 1 Phase 100-240V 50/60Hz
Capacity (Horizontal/Vertical) kg 100 / 60 200 / 130
Rated eccentricity mm A 180 B 90 C 60 D 45 A 84 B 42 C 28 D 10
Table dimension (E) mm 320
Rotation speed rpm A 0.3-4 B 0.6-8 C 0.8-12 D 1-16
Spindle thru hole mm 22
Earthing Amp 200@100% / 300@40%
Tilt range deg 0 -120
Welding timer sec 0 – 60
Overall length (A) mm 460
Overall width (B) mm 315
Overall height (C) mm 340
Center to floor(D) mm 250
Net weight kg 38 42
